Die Grinders


SLP-3025
1/4" Heavy Duty Die Grinder

Designed for numerous material removal applications within automotive repair and body shops, maintenance shops, tool and die shops and general machining facilities. Ideal for use with carbide rotary burrs and mounted stones. Features 20,000 RPM performance generated from the .5 horsepower motor. Rear exhaust directs airflow away from work surface. Equipped with safety throttle lever. Includes two wrenches.
Made in USA
Available with front exhaust - SLP-3025FE
Available with Erickson three-piece collet - SLP-3023
and with rear exhaust - SLP-3023FE

Heavy Duty Die Grinder


SLP-3030
1/4" Low-Speed Heavy Duty Die Grinder

This low-speed version of the SLP-3025 features 3,500 RPM for grinding and material removal applications requiring high torque and low speed. Equipped with safety throttle lever. Includes two wrenches.
Made in USA


Low Speed Heavy Duty Die Grinder

Model #
Free Speed
(RPM)
Required
Air Pressure
(PSI)
Weight
(LBS.)
Length
(IN.)
Average
Air Consump.
(CFM)
Air
Inlet
(IN.-NPT.)
Required
Hose Size
(IN.)
Collet
Capacity
(IN.)
SLP-3025
20,000
90
1.500
7.000
4
.250
.375
.250
SLP-3030
3,500
90
2.000
8.625
4
.250
.375
.250

SLP-3125
1/4" Mini Die Grinder

Reduced version of the SLP-3025 is also designed to operate effectively with carbide rotary burrs and mounted stones. Small size enhances the ability to grind in confined or hard to reach areas. Tool operates at 25,000 RPM with rear exhaust. Equipped with safety throttle lever. Includes two wrenches.
Made in USA

Mini Die Grinder



SLP-3120
120 Degree Angle Mini Die Grinder

This uniquely designed die grinder operates with the same features as the SLP-3150, but with an alternate grinding angle. Great for use with carbide rotary burrs or surface preparation discs. Features 20,000 RPM with .3 horsepower. Includes safety throttle lever and two wrenches.
Made in USA

120 Degree Mini Die Grinder

Model #
Free Speed
(RPM)
Required
Air Pressure
(PSI)
Weight
(LBS.)
Length
(IN.)
Average
Air Consump.
(CFM)
Air
Inlet
(IN.-NPT.)
Required
Hose Size
(IN.)
Collet
Capacity
(IN.)
SLP-3125
25,000
90
0.875
5.750
3
.250
.375
.250
SLP-3120
20,000
90
1.125
7.250
3
.250
.375
.250

SLP-3150
1/4" Right Angle Mini Die Grinder

This tool is one of our most popular grinders. The compact design works great in confined areas where a straight tool cannot be used. Excellent when used with surface preparation or sanding discs. Rear exhaust performance is ideal for grinding, polishing and deburring. Features 20,000 RPM with .3 horsepower. Equipped with safety throttle lever. Includes two wrenches.
Made in USA
Available in low-speed version - SLP-3154

Right Angle Mini Die Grinder



SLP-3035
Pin Stripe Removal Tool

Designed to work with one of the most popular accessories in the market, the Eraser pin strip removal disc. The tool includes an arbor that accepts the Eraser pad. Geared for high torque and low speed at 3,500 RPM. Removes the pin stripe without scorching the painted surface. Features rear exhaust. Includes safety throttle lever and wrench.
Made in USA

Low-Speed Right Angle Mini Die Grinder

Model #
Free Speed
(RPM)
Required
Air Pressure
(PSI)
Weight
(LBS.)
Length
(IN.)
Average
Air Consump.
(CFM)
Air
Inlet
(IN.-NPT.)
Required
Hose Size
(IN.)
Collet
Capacity
(IN.)
SLP-3150
20,000
90
1.125
6.000
3
.250
.375
.250
SLP-3035
3,500
90
2.000
8.625
4
.250
.375
N/A
SLP-3154
4,500
90
1.625
7.250
3
.250
.375
.250

SLP-3150SPK
Surface Preparation Kit with
1/4" Right Angle Mini Die Grinder

Includes the SLP-3150, 1/4" Right Angle Mini Die Grinder, and the following items:
Qty. 3-Grinding Stones   Qty. 3-Prep Pads (Fine, med., course)
Qty. 2-Flap Wheels         Qty. 3-3" Sanding Discs (36, 50, 80G)
Qty. 1-3" R-Type Holder  Qty. 3-2" Prep Pads (Fine, med., course)
Qty. 1-2" R-Type Holder  Qty. 3-2" Sanding Discs (36, 50, 80G)
Qty. 2-Collet Wrenches

Surface Preparation Kit



SLP-3151
Mini Angle Head Die Grinder with
R-Type Spindle

This version of the SLP-3150 does the job when used with the R-Type pads and surface preparation discs. Incorporates a unique spindle which allows the pad holder to screw on up to the angle head thereby eliminating the normal collet length. Includes safety throttle lever and wrenches.
Available in low-speed version - SLP 3155
Available with surface preparation kit - SLP-3151SPK
Made in USA

Mini Angle Head Die Grinder

Model #
Free Speed
(RPM)
Required
Air Pressure
(PSI)
Weight
(LBS.)
Length
(IN.)
Average
Air Consump.
(CFM)
Air
Inlet
(IN.-NPT.)
Required
Hose Size
(IN.)
Collet
Capacity
(IN.)
SLP-3151
20,000
90
1.125
6.000
3
.250
.375
N/A
SLP-3155
4,500
90
1.625
7.250
3
.250
.375
N/A

SLP-3225
1/4" MId-Size Die Grinder

This unit is larger than the SLP-3125, mini die grinder, but is more compact than the SLP-3025. The slim motor and housing provides a better fit and more comfort. Like the other die grinders, this tool works in a variety of applications and can be used with carbide rotary burrs or mounted stones. Features 22,000 vibration-less performance with rear exhaust. Equipped with safety throttle lever. Includes two wrenches.
Made in USA

Mid-Size Die Grinder



SLP-3060

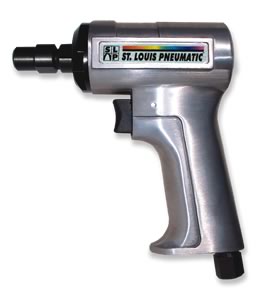

1/4" Pistol Grip Die Grinder

Comfortable pistol grip contour provides alternative grinding angle. Handles many general purpose applications. Features 18,000 RPM and through-handle exhaust. Includes two wrenches.
Made in USA

Pistol Grip Die Grinder

Model #
Free Speed
(RPM)
Required
Air Pressure
(PSI)
Weight
(LBS.)
Length
(IN.)
Average
Air Consump.
(CFM)
Air
Inlet
(IN.-NPT.)
Required
Hose Size
(IN.)
Collet
Capacity
(IN.)
SLP-3225
22,000
90
1.250
6.500
3
.250
.375
.250
SLP-3060
18,000
90
1.850
5.200
6
.250
.375
.250

SLP-3225L
1/4" Lighted Mid-Size Die Grinder

Now you can illuminate your grinding surface due to the revolutionary and patented "on-board" generator which creates electricity to power three incandescent lamps at the front of the tool. Use with carbide burrs or mounted stones for grinding, polishing, and deburring. Equipped with safety throttle lever. Features 22,000 RPM and rear exhaust. Includes two wrenches.
Made in USA

Lighted Mid-Size Die Grinder



SLP-3260L
Lighted High-Speed Mini Pistol Grip Die Grinder

This tool includes the same features as the SLP-3225L except that these features are included in a small pistol grip contour as an alternative grinding angle. The working surface is illuminated for enhanced visibility, safety, and productivity through new technology. Includes through-handle exhaust and two wrenches.
Made in USA

Lighted Mini Pistol Grip Die Grinder

Model #
Free Speed
(RPM)
Required
Air Pressure
(PSI)
Weight
(LBS.)
Length
(IN.)
Average
Air Consump.
(CFM)
Air
Inlet
(IN.-NPT.)
Required
Hose Size
(IN.)
Collet
Capacity
(IN.)
SLP-3225L
22,000
90
1.500
7.625
3
.250
.375
.250
SLP-3260L
22,000
90
1.560
6.750
3
.250
.375
.250
